rambrain::managedMemoryChunk Class Reference

manages all managed Chunks of raw memory More...

#include <managedMemoryChunk.h>

Public Member Functions
	managedMemoryChunk (const memoryID &parent, const memoryID &me)
	managedMemoryChunk (const memoryID &me)

Public Attributes
memoryStatus	status
unsigned short	useCnt
	Number of using adhereTos or a possible location for locking the object to changes. More...
void *	locPtr
	pointer to the actual data in RAM More...
global_bytesize	size
	Size of actual object in bytes. More...
memoryID	id
	an ID to identify the object in scheduler or elsewhere More...
memoryID	parent
	parent element if created in class hierarchy More...
memoryID	next
	next element More...
memoryID	child
	first child element if creating a class hierarchy More...
bool	preemptiveLoaded = false
void *	schedBuf
	a place to store additional scheduling information More...
void *	swapBuf
	a place to store additional swapping information More...

Detailed Description

manages all managed Chunks of raw memory

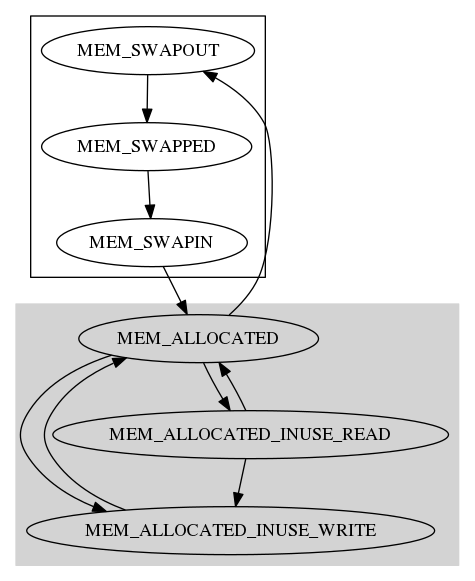

This object tracks the dimesions and status of a chunk of memory we manage. The status is inherently connected to the logic we can operate on the object and it is basically prescribed what classes may change the status from wich state to which. Even though it would be more clear to have convenience and thread-safe functions here, we decided for this due to performance issues. More documentation to come. The basically possible transitions are depicted in the following graph:

Note

when changing status, you have to hold the stateChangeMutex of the associated memoryManager

Warning

There may be changes to any objects status when calling waiting functions in managedMemory or managedSwap. Thus the user has to check the status of the object again having called such functions or having freshly acquired the lock

Definition at line 54 of file managedMemoryChunk.h.

Constructor & Destructor Documentation

rambrain::managedMemoryChunk::managedMemoryChunk	(	const memoryID &	parent,
		const memoryID &	me
	)

Definition at line 27 of file managedMemoryChunk.cpp.

rambrain::managedMemoryChunk::managedMemoryChunk

(

const memoryID &

me

)

Definition at line 32 of file managedMemoryChunk.cpp.

Member Data Documentation

memoryID rambrain::managedMemoryChunk::child

first child element if creating a class hierarchy

Definition at line 74 of file managedMemoryChunk.h.

memoryID rambrain::managedMemoryChunk::id

an ID to identify the object in scheduler or elsewhere

Definition at line 70 of file managedMemoryChunk.h.

void* rambrain::managedMemoryChunk::locPtr

pointer to the actual data in RAM

Definition at line 66 of file managedMemoryChunk.h.

memoryID rambrain::managedMemoryChunk::next

next element

Definition at line 73 of file managedMemoryChunk.h.

memoryID rambrain::managedMemoryChunk::parent

parent element if created in class hierarchy

Definition at line 72 of file managedMemoryChunk.h.

bool rambrain::managedMemoryChunk::preemptiveLoaded = false

Definition at line 76 of file managedMemoryChunk.h.

void* rambrain::managedMemoryChunk::schedBuf

a place to store additional scheduling information

Definition at line 79 of file managedMemoryChunk.h.

global_bytesize rambrain::managedMemoryChunk::size

Size of actual object in bytes.

Definition at line 67 of file managedMemoryChunk.h.

memoryStatus rambrain::managedMemoryChunk::status

Definition at line 64 of file managedMemoryChunk.h.

void* rambrain::managedMemoryChunk::swapBuf

a place to store additional swapping information

Definition at line 82 of file managedMemoryChunk.h.

unsigned short rambrain::managedMemoryChunk::useCnt

Number of using adhereTos or a possible location for locking the object to changes.

Definition at line 65 of file managedMemoryChunk.h.

---

The documentation for this class was generated from the following files:

• /home/rambrainbuild/docubrain/src/managedMemoryChunk.h
• /home/rambrainbuild/docubrain/src/managedMemoryChunk.cpp
